Versions produced: 2

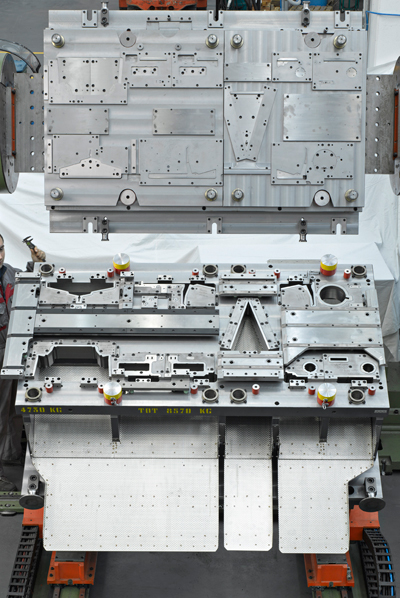

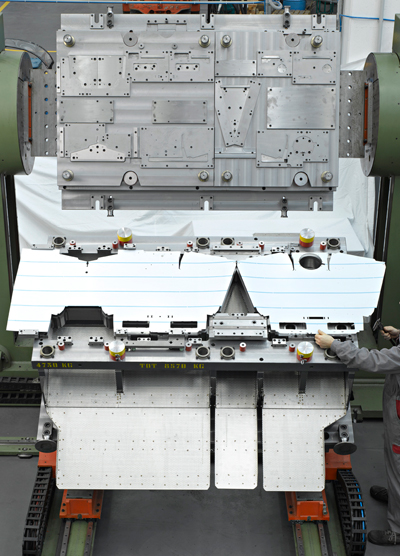

Type of dies: 1 progressive + transfer die
Die dimensions: mm 2050 x 1600 x 930
Die weight: 8570 Kg
Dimensions of the part produced: mm 992,4 x 706,4
Pressed material: sheet metal DX51D and DC01 stainless steel 1.4016
Material thickness: 0,7 mm
Starting material: coil
Sector: household appliances
Part Produced: Blechplatine EE1 – 60 cm GL – Ausschnitt, Metal Blank
